Design · Drawing · Fabrication
Engineeringthat survivesthe descent.
From parametric CAD models and drawing packs to parachute canopies, harnesses and the bags that carry them — designed, documented and manufactured under one roof in Agra.
- Years in design and fabrication
- 10+
- Drawing packages delivered
- 500+
- Recovery systems manufactured
- 1,200+
- Typical quotation turnaround
- 48hr
Capabilities
Seven disciplines, one continuous thread
A drawing is only useful if someone can build from it, and a canopy is only useful if it was drawn properly first. We keep design, documentation and fabrication in the same building so nothing is lost in the handover.
- SVC-01
2D & 3D CAD Drawing and Design
Production-ready 2D drawings and parametric 3D models, built to your standards and revision-controlled from the first sketch.
- Parametric 3D modelling and assemblies
- 2D detailing to ISO / ASME drawing standards
- Legacy drawing conversion and redrawing
- Revision control and change tracking
- SVC-02
Engineering & Product Design
Concept through to manufacturable product — sizing, material selection, tolerance stack-up and design-for-manufacture review.
- Concept development and feasibility
- Design for manufacture and assembly
- Tolerance analysis and fit checks
- Material and component selection
- SVC-03
Parachute Design & Development
Canopy geometry, gore layout and harness design for recovery systems, developed against your payload and descent-rate targets.
- Canopy sizing to payload and descent rate
- Gore and panel flat-pattern development
- Harness, riser and bridle design
- Prototype iteration and drop-test support
- SVC-04
Parachute Fabrication & Manufacturing
In-house cutting, sewing and assembly of canopies and recovery systems, with inspection records against every unit.
- Precision cutting and panel preparation
- Load-bearing seam and harness assembly
- In-process and final inspection
- Batch traceability and build records
- SVC-05
Parachute Accessories Design & Fabrication
Deployment bags, sliders, risers, static lines and the hardware that goes with them — designed to match the canopy they serve.
- Deployment bags and sliders
- Risers, static lines and bridles
- Hardware selection and integration
- Replacement and retrofit parts
- SVC-06
Specialized Bags & Carrying Equipment
Purpose-built bags and carrying systems for equipment that does not fit anything off the shelf — configurable to your load and environment.
- Custom sizing to the equipment carried
- Technical fabric and hardware selection
- Load-bearing harness and strap systems
- Short-run and batch manufacture
- SVC-07
Engineering Drawings & Technical Documentation
Drawing packs, assembly instructions, parts lists and manuals — the paperwork that makes a design buildable by someone else.
- Complete drawing packages and BOMs
- Assembly and maintenance manuals
- Inspection and test documentation
- Standards-compliant technical writing
- Start an enquiry
Not sure which you need?
Describe the problem rather than the service. Send us the payload, the environment and the quantity, and we will tell you what the job actually requires.
Capability sheets
What a finished job actually looks like
Two reference sheets covering the documentation we hand over and the accessories we build. Open either one full size.
Engineering Drawings & Technical Documentation
SVC-07Complete drawing packages, bills of materials, assembly and installation instructions, maintenance and inspection manuals, illustrated parts catalogues, and a controlled revision history.

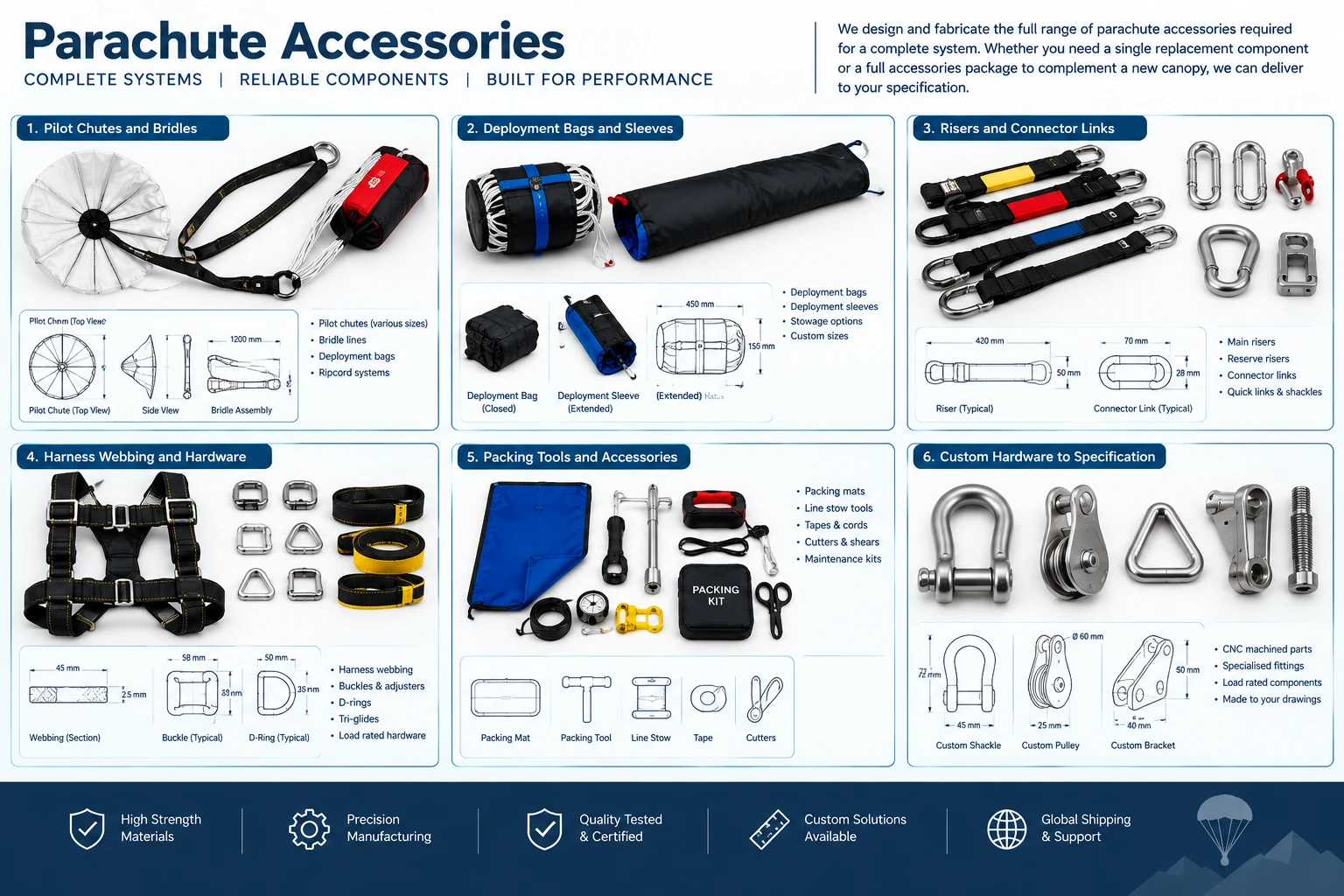

Parachute Accessories
SVC-05Pilot chutes and bridles, deployment bags and sleeves, risers and connector links, harness webbing and hardware, packing tools, and custom load-rated hardware made to your drawings.
Need a sheet like this for your own programme? Send us the payload, the environment and the quantity, and we will tell you what the job requires.
Ask about your projectSpecialized bags · SVC-06
Build your carrying specification
Work through the options and we will return a drawn proposal against the spec you produce here. Nothing is priced automatically — carrying equipment is quoted against the real load, environment and quantity.
How we work
Nothing gets cut before it gets drawn
Four stages, each with something you can review. You are never asked to approve a finished article you have not seen on paper first.
- 01
Requirement & brief
We capture your payload, environment, standards and volumes — and tell you up front what is missing to quote properly.
- 02
Design & drawing
Concept, 3D model and a drawing pack you can review. You see geometry before anything is cut.
- 03
Prototype & test
A first article is built and checked against the drawing, with test support where the application needs evidence.
- 04
Manufacture & handover
Batch manufacture with inspection records, delivered with the documentation needed to maintain and reorder it.
Traceability
Every batch ships with inspection records and full traceability back to the drawing revision it was built from.
Contact
Tell us what it has to carry
The more you can tell us about the load, the environment and the quantity, the closer the first quotation will be.
